SKU: AI-000370

Toyota / Hilux / IFS FRONT (1988-2004)

Toyota / Hilux / SOLID AXLE FRONT (1979-1998)

In Stock
One Time Payment
4 Interest Free Payments of
Buy now, pay later Visa, Mastercard, American Express, Afterpay more info...
  • 14 days no quibbles returns policy*
  • Cheap shipping: we check rates from 7 different carriers and quote the cheapest. Try us out below
Shipping Estimate (Australia only)

Items that are shipped on a pallet can only be shipped to business addresses with forklift access or the carriers local depot for you to pickup

International Shipping Costs available in Checkout

Enquire about this

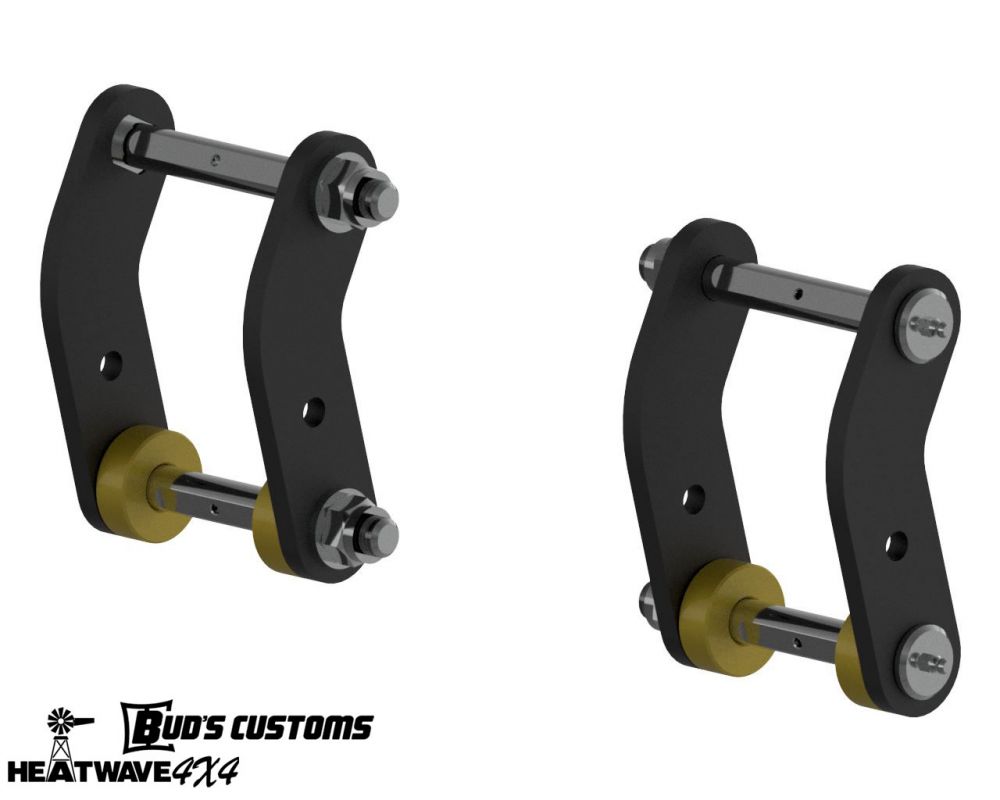

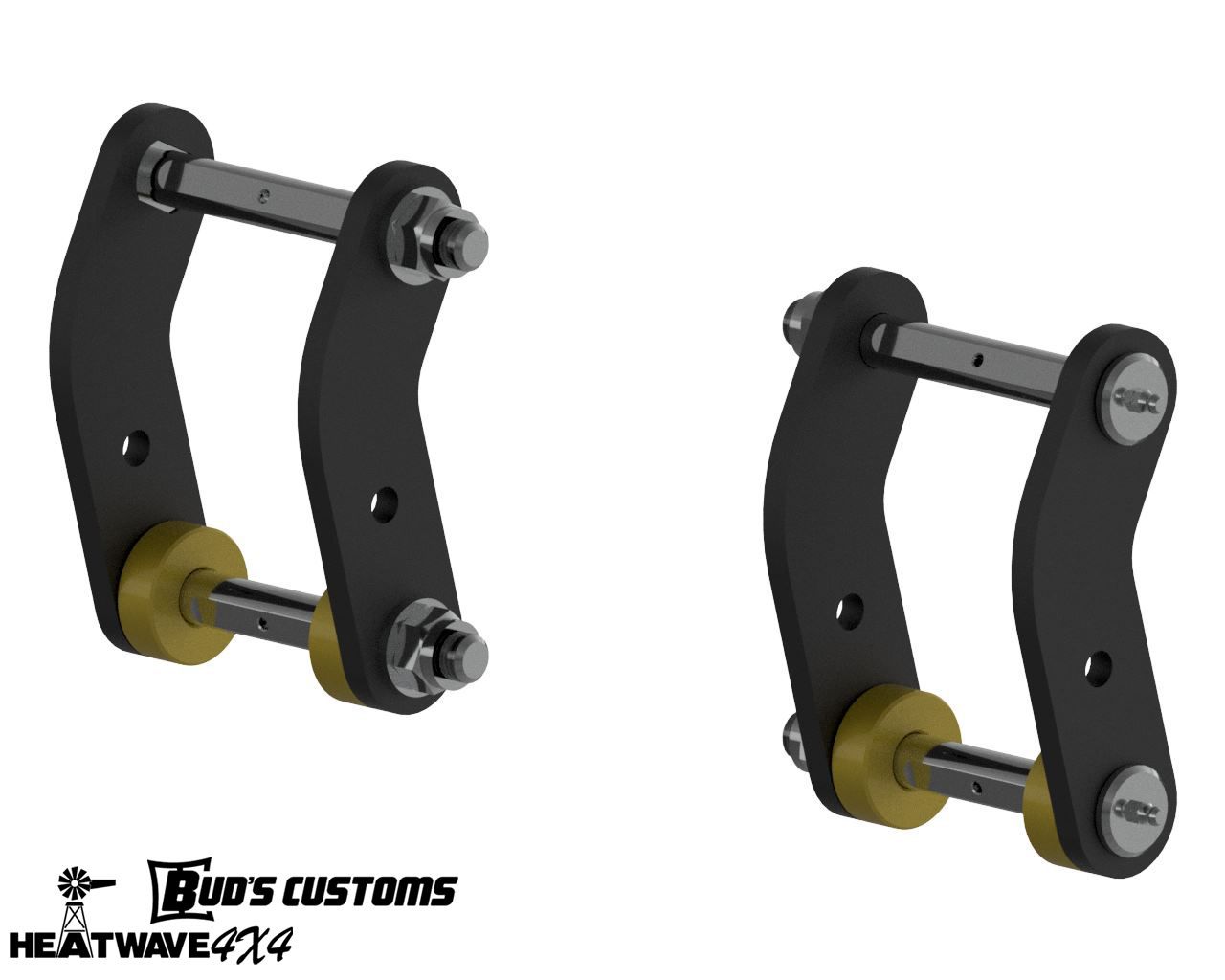

Our “banana” 1979 – 1997 Hilux front shackle, between pin measures 135mm on this option. This is the shackle we developed back in 2005 to do the rears up front conversion to your solid axle Hilux. We have the bend in the side plate to allow full compression of spring to the frame without colliding with the body mount. When doing your rears up front, we recommend using the 1220mm long spring from the rear of a solid front axle Hilux, the number one advantage is the pulling forward of the axle approx. 50mm to aid approach angle and tyre clearance. To get full benefit you will need to add cross over steering, shock hoops and longer shocks.
Shackles are made from 10mm steel with 6mm centre brace to ensure strength, these are then sand blasted under coated and finished in a hard wearing textured powder coat.

The Generation 2 is our upgrade to the pin design, no longer a purchased and machined bolt these are now a full CNC machined 4140 proprietary pin made specifically for us.

The new pin features flat spot to ensure longer life of the shackle as the pin is forced to turn in the bush and not the shackle, we have also added shoulders to the bolt so they can't be over tightened and lastly grease flat spots to help bush life.
