Doing a rears up front (RUF) on your older solid axle Hilux and you want to make the process as easy as possible for you mounting your shock towers and steering box then this kit is for you.

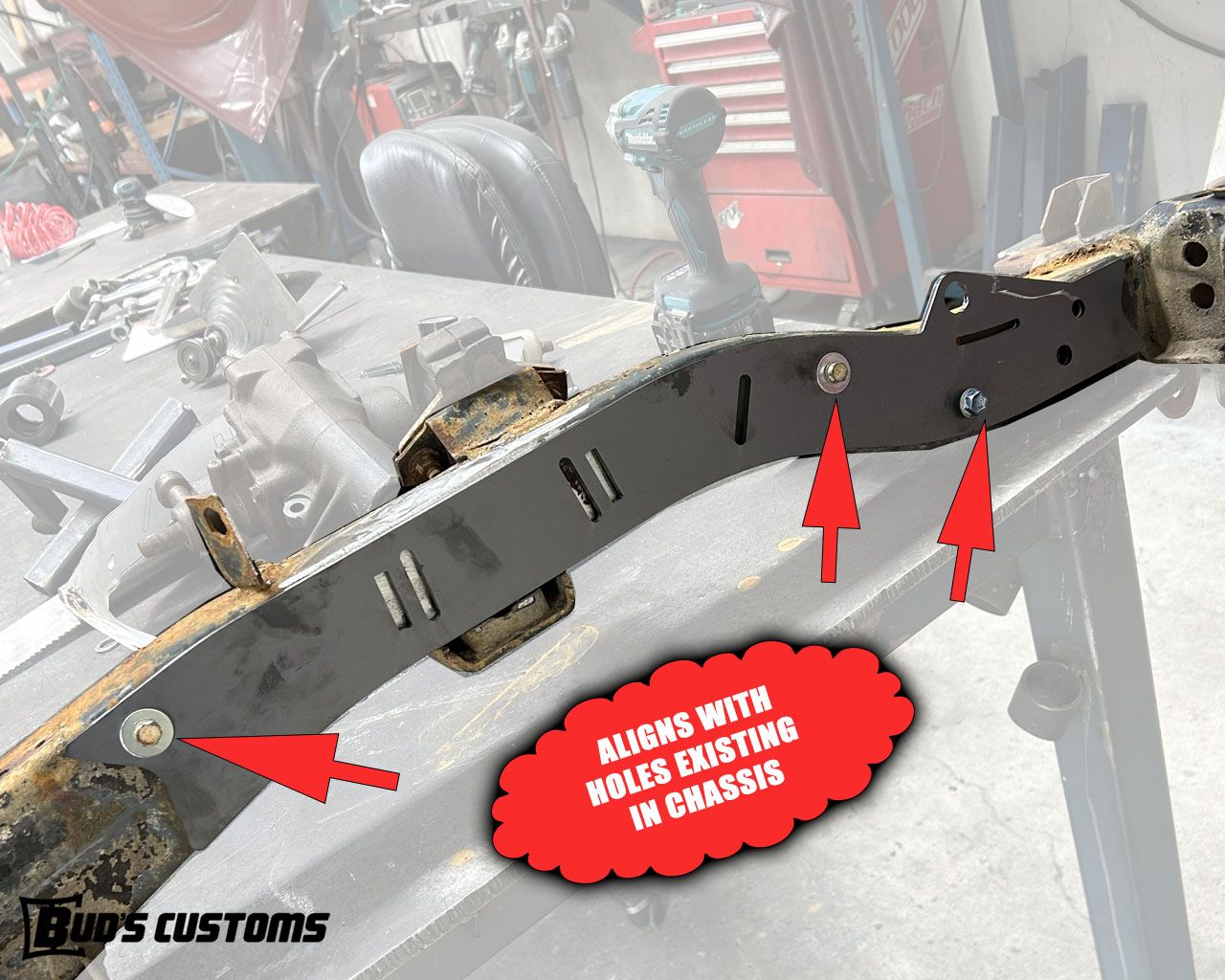

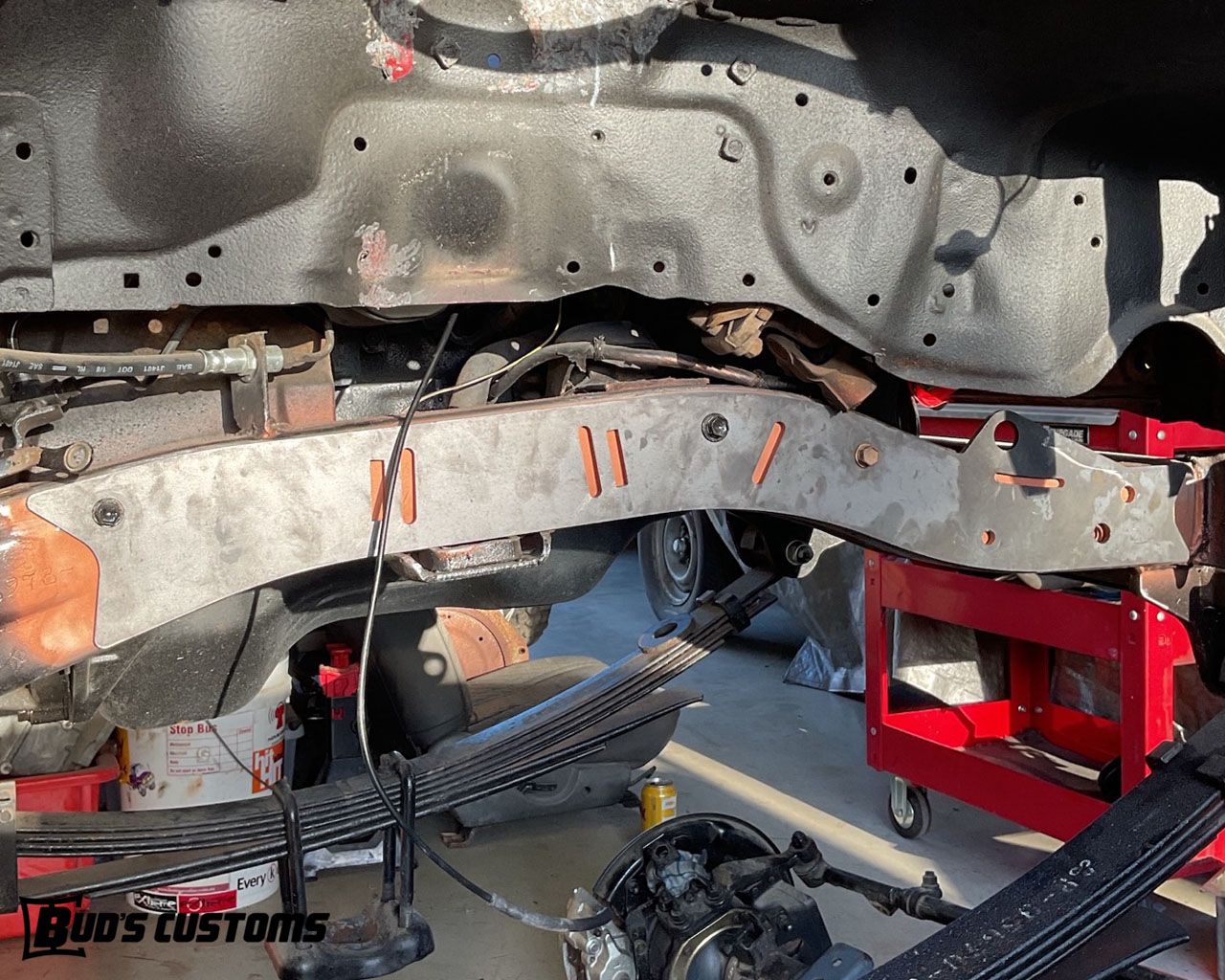

After years of installing high steer crossover on to Hilux’s which also meant upgrading the shock hoops to get the most out of the front end we thought it time to sit down and reapproach how this was done. With this in mind and customer feed back we have come up with this new kit for mounting the steering box that incorporates front chassis bracing and also gives you a chassis brace for the passenger side to help align the shock tower with existing frame holes.

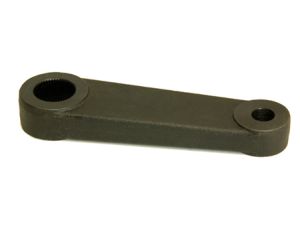

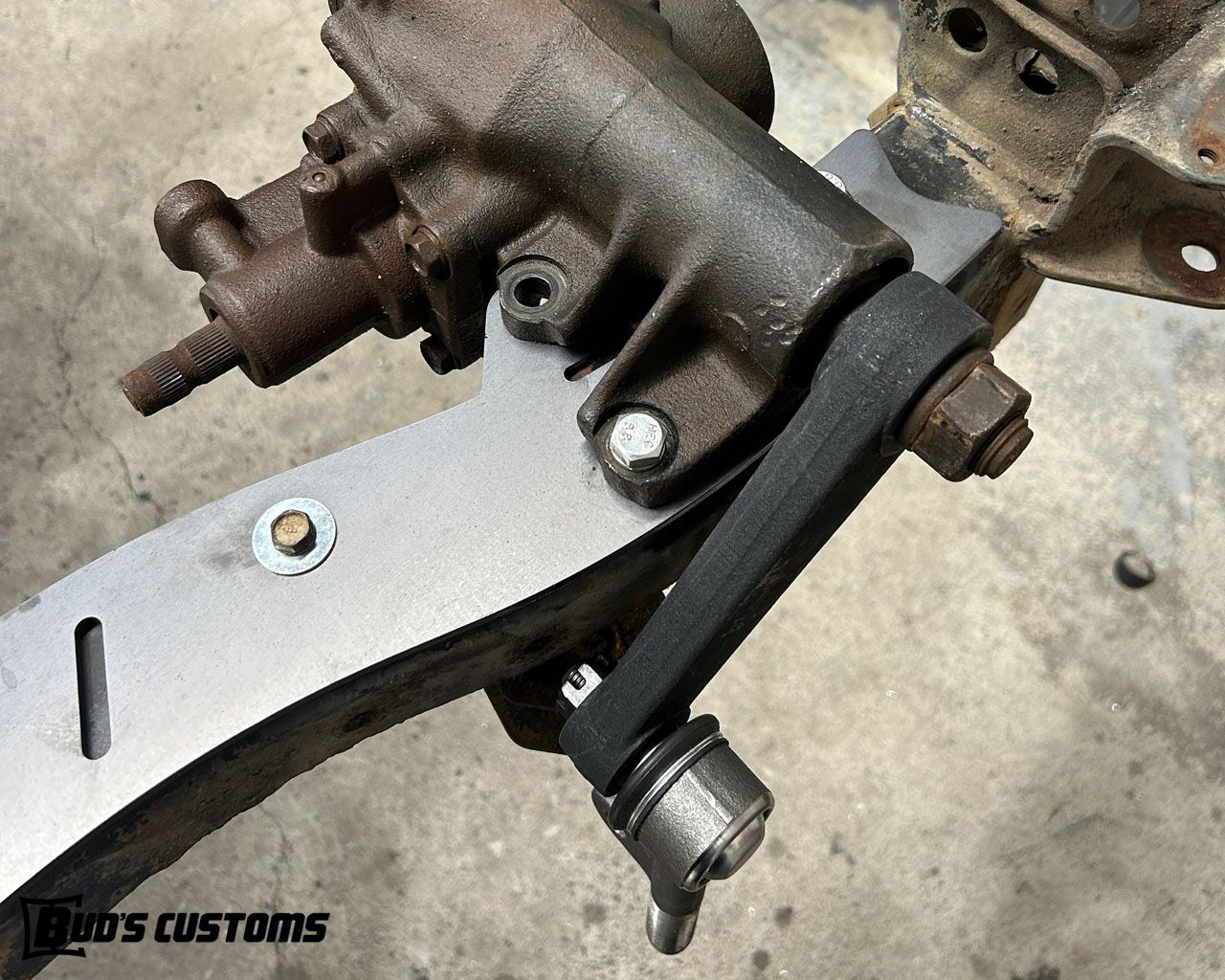

The steering box side chassis plate has a primary location based off a factory solid axle steering box hole this sets the plate in place making it a lot easier to line up the steering box and shock hoops. This kit is specifically designed to work with a flat pitman arm and gets it as close to the chassis rail as possible for spring up travel.

Kit includes:

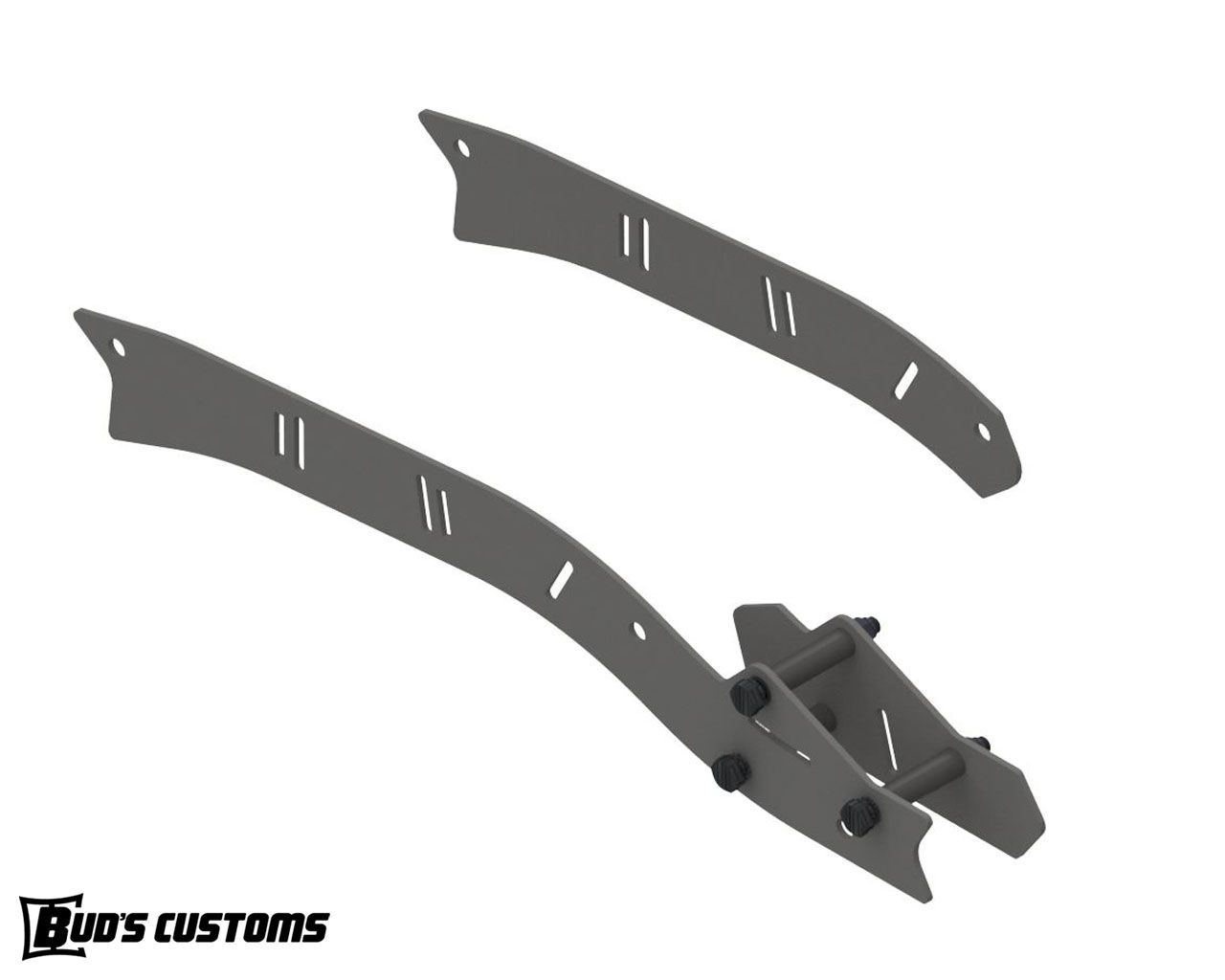

3 x 5mm Laser Cut Plates
3 x Crush Tubes
3 x Steering Box Bolts

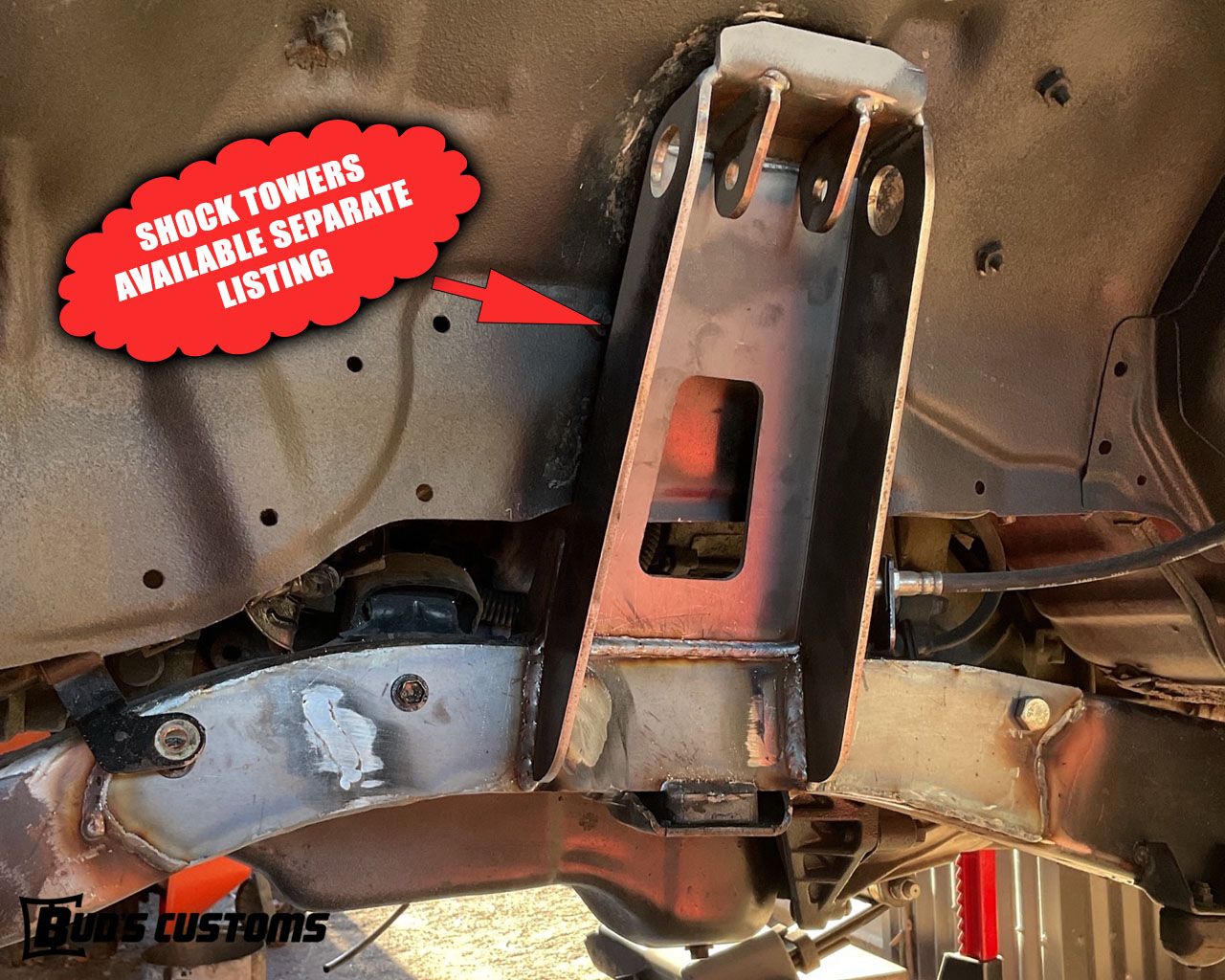

The shocks towers and pitman arm are available separately on the website.
