GQ/GU PATROL - REAR LOWER LONG ARM - GEN 2 KIT

GQ/GU PATROL - REAR LOWER LONG ARM - GEN 2 KIT

Price: $1,195.00

SKU: SC-002200

Nissan / Patrol / GQ

Nissan / Patrol / GU

In Stock
Buy now, pay later Visa, Mastercard, American Express, Afterpay more info...
-
+
  • 14 days no quibbles returns policy*
  • Cheap shipping: we check rates from 7 different carriers and quote the cheapest. Try us out below
Shipping Estimate (Australia only)

International Shipping Costs available in Checkout

Enquire about this
You might also like:

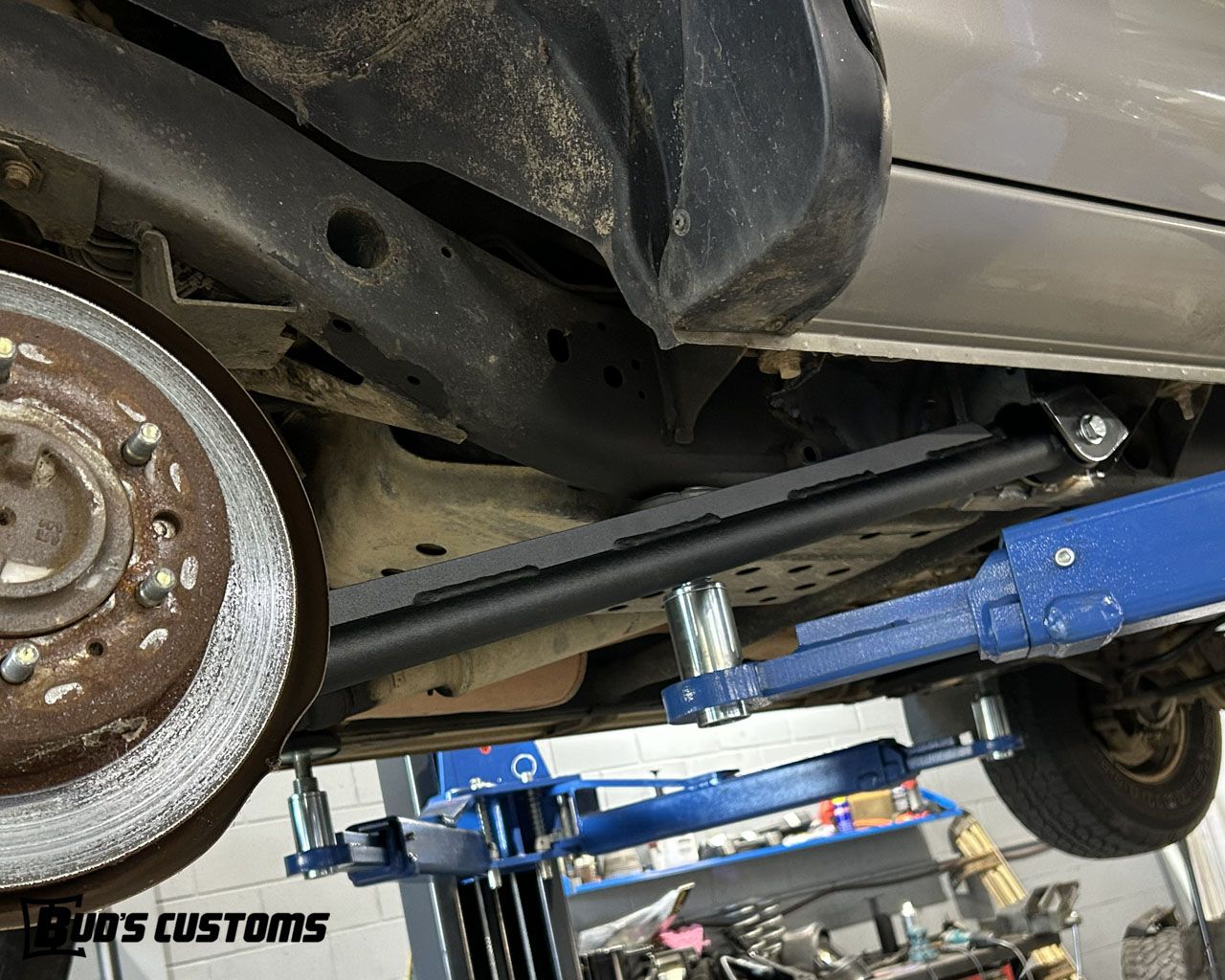

Looking for the best rear lower long arm kit for you Nissan GQ or GU patrol then look no further. Having been manufacturing and installing rear long arm kits of both ours and other suppliers the worse part of the job and most labour intensive part is dropping the sub tank in a GU or a GQ if an aftermarket was fitted. We knew there was a better way and just sat on the idea accepting what was the tried-and-true method of a chassis sleeve than an external shear plate or bracket, then we decided it was time to make peoples life easier.

The rear kit has all the same advantages as all rear long arm kits on the market:
  • Reducing rear steer
  • Minimizing rear pinion angle change during travel
  • Helps reduce rear axle wanting to drive under the vehicle when climbing an obstacle

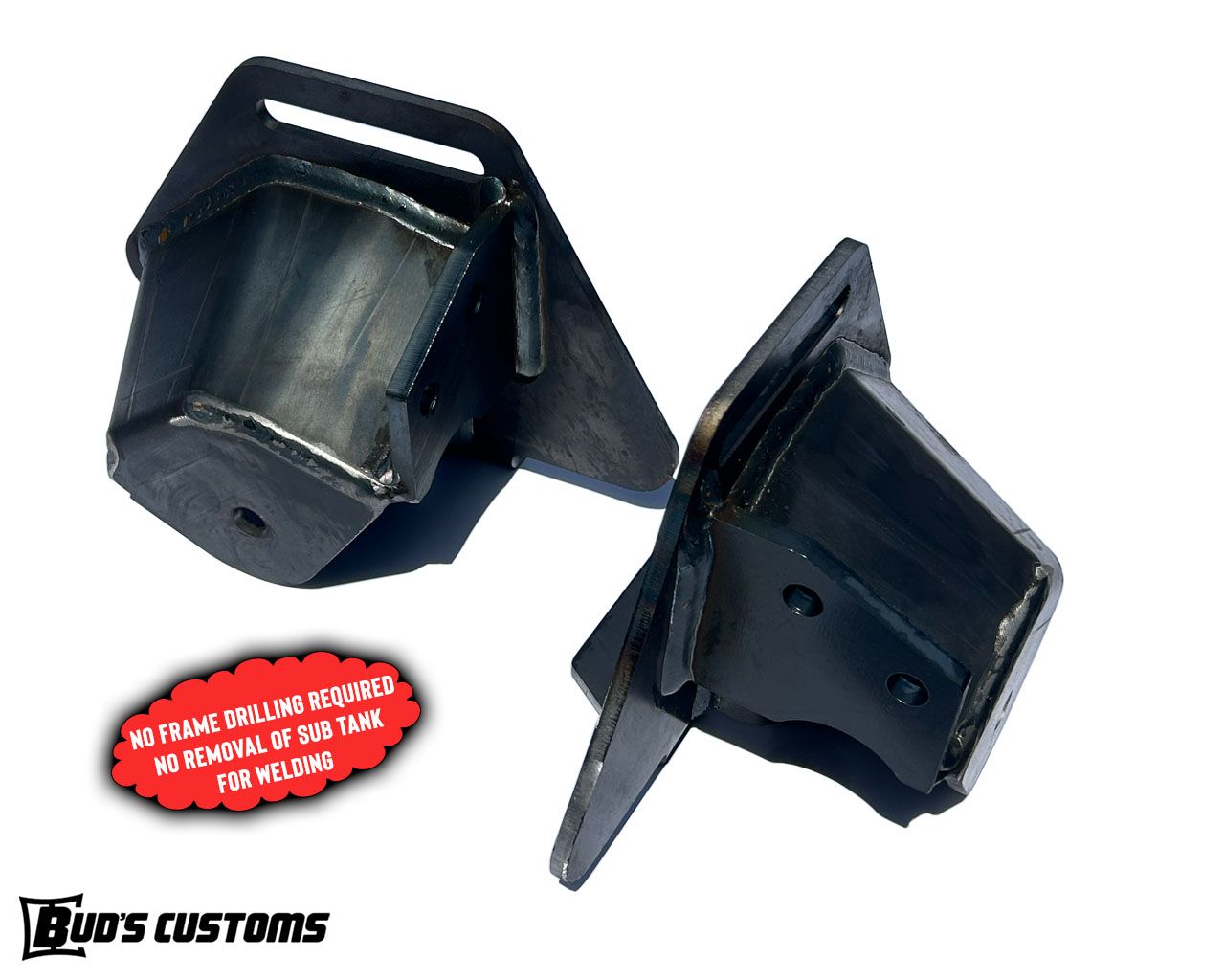

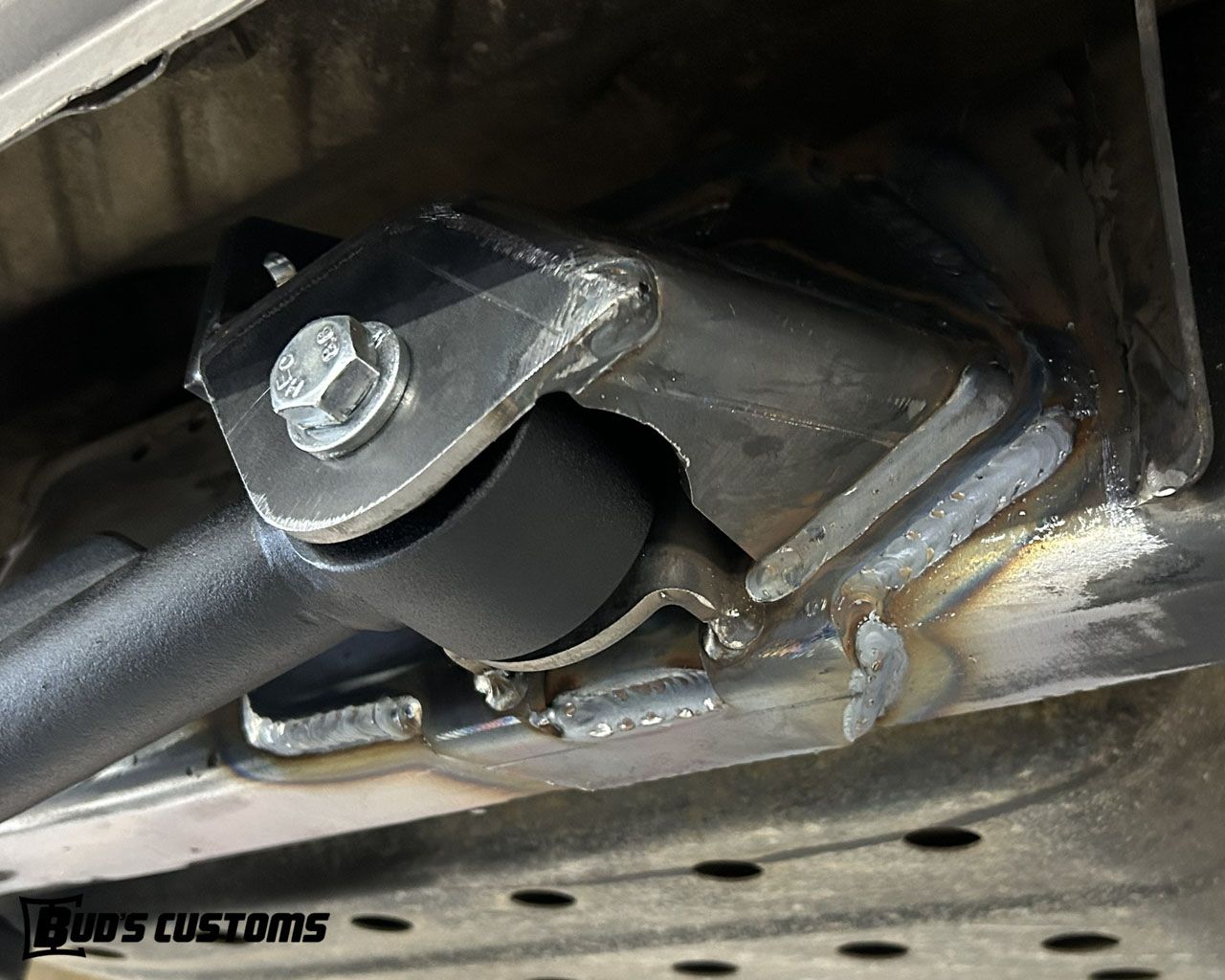

The number one difference is how we have developed a double shear support bracket which just allows enough room to get a nut up inside and allows for no need to hole saw through the frame rail. This last point again reduces the install time significantly over the existing options and we provide a handy spanner jig for moving the lower mount by our recommended 300mm.

The frame bracket is of 6mm & 8mm 350GR steel construction and the rear long arm itself is 41mm OD 550MPa with minimum 9mm wall thickness. The rear arms also feature a 10mm strong back along its length.

The frame bracket also incorporates a provision to join your sliders into the 8mm bracket support gusset. We have a separate kit available to use for your slider rear brackets.

We are able to provide testing data for under NCOP so if you are engineering your vehicle get in contact with us for further information.

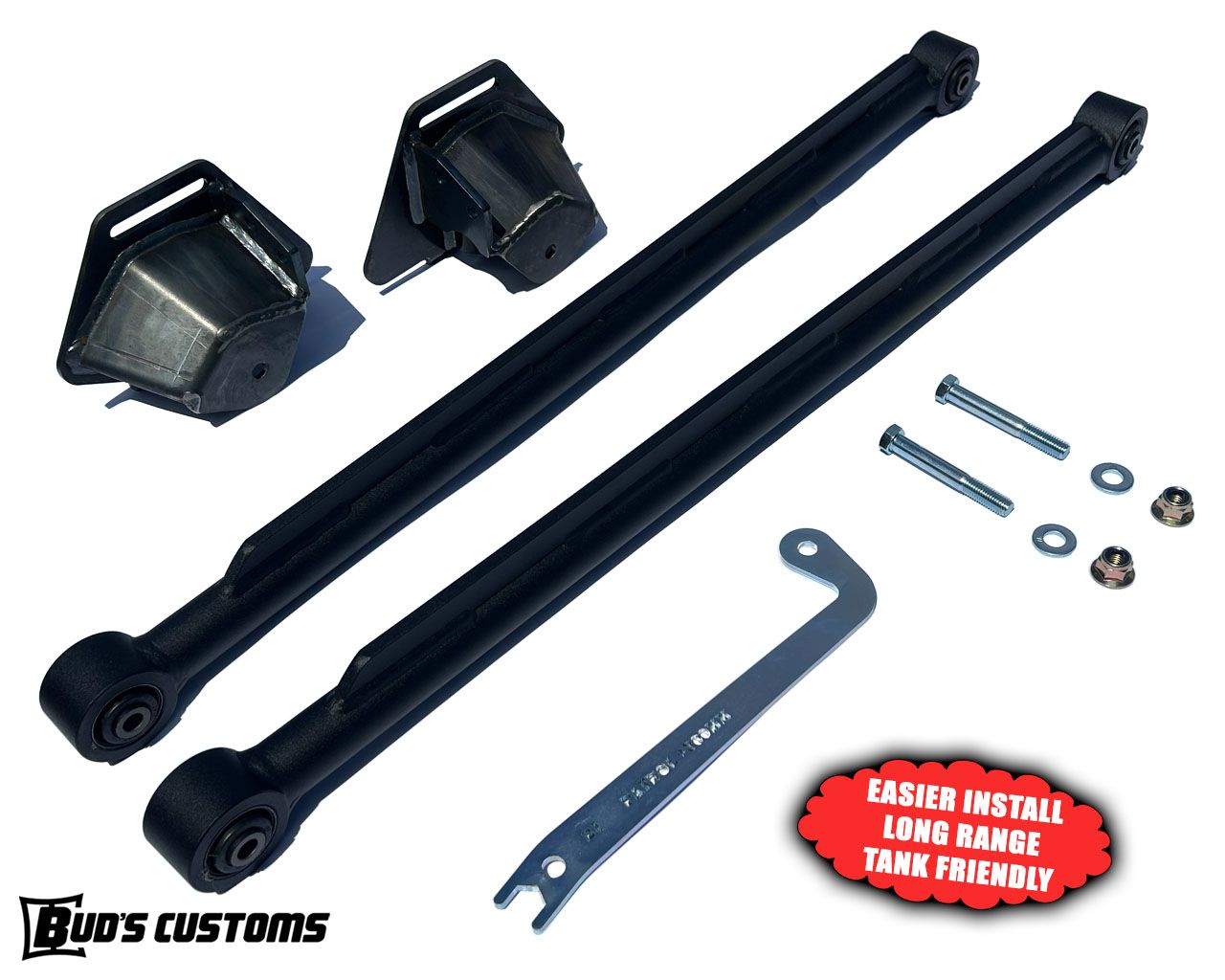

Kit includes:
  • 2 x Rear lower long arms finished in a texture black powder coat
  • 2 x Fabricated frame brackets.
  • 1 x Hardware kit
  • 1 x Installation jig / spanner
Only ever supplied with genuine Nissan Bushes fitted.
