GQ/GU PATROL - FRONT LONG ARMS - 3/4" KIT - SUIT TB/TD/ZD ENGINES - SWAY BAR HOLES - COMP SPEC
GQ/GU PATROL - FRONT LONG ARMS - 3/4" KIT - SUIT TB/TD/ZD ENGINES - SWAY BAR HOLES - COMP SPEC
GQ/GU PATROL - FRONT LONG ARMS - 3/4" KIT - SUIT TB/TD/ZD ENGINES - SWAY BAR HOLES - COMP SPEC
SKU: SC-000840
Nissan / Patrol / GQ
Nissan / Patrol / GU

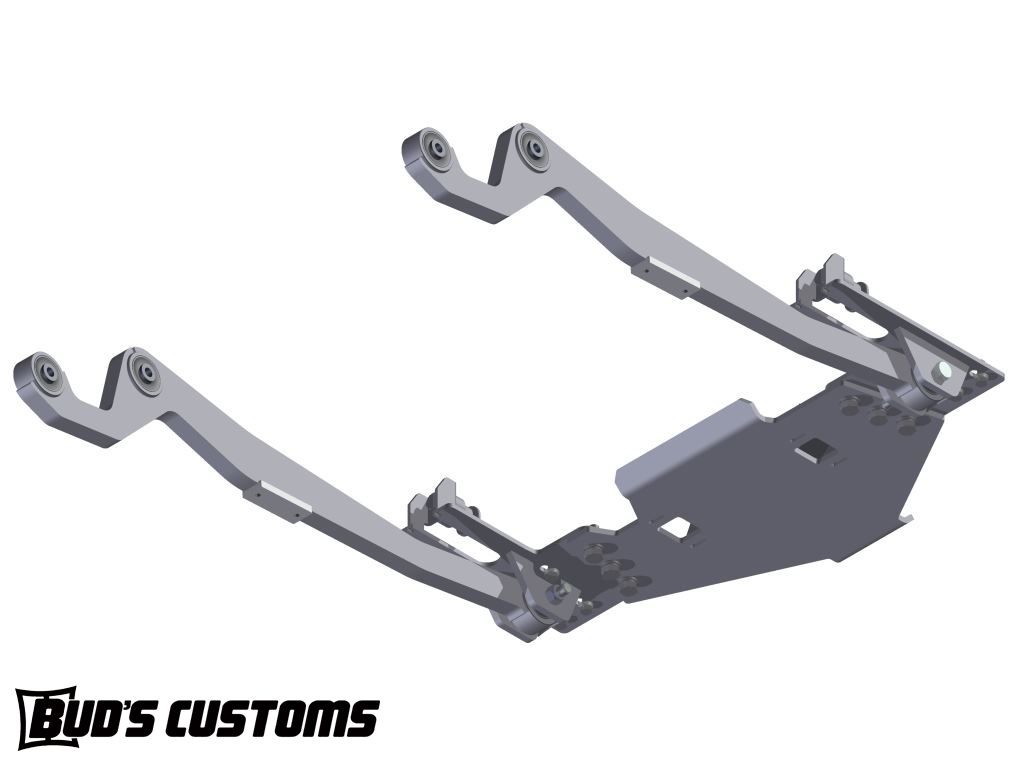

For many years, the Bud's Patrol Front Long Arm Kit has been one of the best kept secrets.
This is the best solution for all round ride, handling and comfort in your Patrol. The longer radius arm allows for a better ride and allows more suspension travel in front than standard radius arms / drop box setups. We also were the first to commercially see the potential of removing the Nissan rear pin bush mount and fit the "80 series" rear bush to our front arms, giving better bush life, travel and suspension feel.
The longer length arm in the front allows more flex as the dimension achievable in the vertical before binding is increased, but the biggest advantage is the ride that is possible out of your Patrol both on and off road. Having the arms down lower and under the chassis allows the axle to be more inclined to compress the suspension rather than extend when hitting obstacles / corrugations when driving, giving a smoother ride with less road noise back through the car.

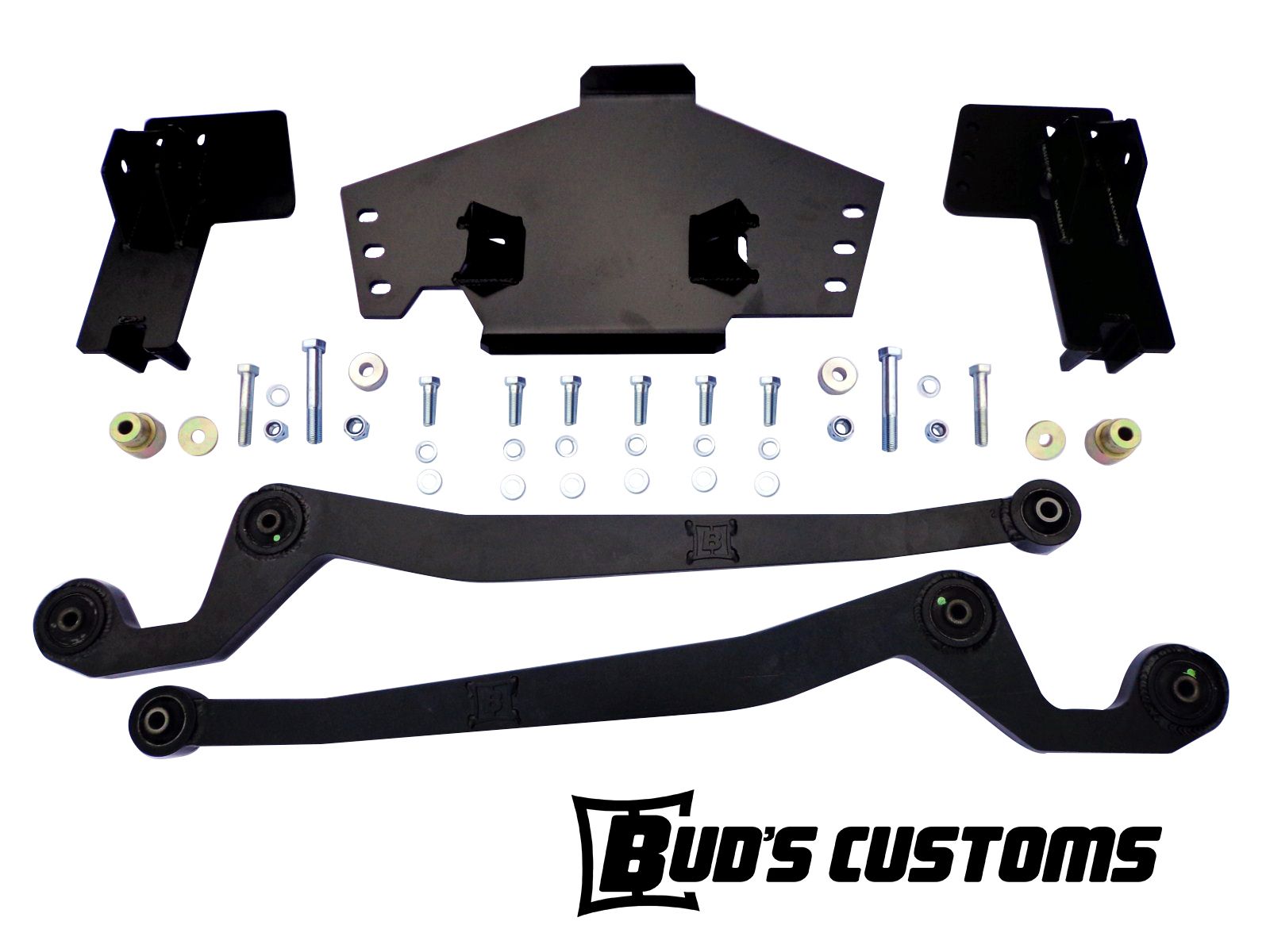

Kit includes
2 x 32mm Thick Radius Arms with "GENUINE" Nissan and Toyota Bushes Fitted. Supplied with provisions to run factory front sway bar.
2 x Drop Boxes
1 x Cross Member Suit TD42, TB42/45/48 and ZD30 engines (other engines on request)
1 x Mounting Hard Ware
A recent revision has seen the drop boxes have the radius arm mounts increased from 6mm to 12mm for a true competion spec solution.
This is the best radius arm solution for your patrol. Fitting is available, contact us for better freight quotes if price seams out of the question.
(SC-000840)
Items that weigh over 30 kg are generally shipped on a skid to comply with workplace health and safety requirements. Suspension kits generally weigh around 100kg so we ship them on a skid so nothing gets lost. We can only ship skids to business addresses with access to forklift or the carriers local depot for you to pickup.
